Quick Details

  • Condition: New
  • Product Type: high quality paper tube making machine
  • Processing Type: high quality paper tube
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Shunfu
  • Model Number: 4-paper tube machine
  • Voltage: 380V RSTN
  • Power(W): 15KW
  • Dimension(L*W*H): 3600*2000*1600
  • Weight: 1500kg
  • Certification: CE
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: Kraft paper tube machinery
  • Winding diameter: 3-16m/min
  • Transmission mode: Automatic tensioning and anti off type chain transmission
  • Winding head: 4 heads Double belt
  • Output paper: Paper tube core pipe
  • Coating method: Fully automatic glue
  • Paper roll: 3-24 layers
  • Wall thickness: 1-15mm
  • Control way: Host operation panel
  • Speed control: Computer frequency conversion

Packaging & Delivery

Packaging Details 1 Plywood case professional packaging transportation.
2 Standard export wooden case or container, other standard packing ways.
3 According to customer requirements
Delivery Time Shipped in 30 days after payment
Product Description

Automatic Paper Core Tube Pipe Making Machine Especially for Toilet Paper Core

The machine is used for paper tube/ paper can production, such as package tin, tea caddy, food cans, wine cans, fireworks tube, calendar tube, fax paper core, toilet/tissue paper core, etc.



Feature:


01-Low price, strong practicability, stable performance.
02-Automatic cutting, automatic falling tube, automatic speed changing and reverting.
03-Computerized PLC control, touch screen man-machine interface operation.
04-Stainless steel gluing box, with polyurethane scraper and high carbon steel plastic knife, durable in use.
05-Round knife cutting, incision more smooth, and stable performance.
06-Automatic gluing.



Technical Parameter



Tube Diameter20-350mm Number of Roller 24 plies
Tube Max Thickness 16mm Rewinding Noses 4 noses
Operator 2-4 Productive Speed 3-15m/min
Way of Cutting PneumaticPaper-shelf Type crisscross
Way of Tube Down withdraw Power of Mainframe 18KW
Power input 380V 3phase 4wire 50Hz



Size (mm)



Mainframe(L*W*H)4500*2000*2000 Area Space(L*W) 16000*9000
Wheel Hub Diameter 325 Wheel Hub Height 400-600
Tread 1100*1400 Total Weight 3100kg



Driving System



Modle of Main Motor18KW Weihai Mainframe Rotate Speed 1400r/min
Hub Max Rotate Speed 50r/min Hub Output Torque 2850N.m
Reductor Type WPO155 Modle of Driving Chain 16A*1
Wheel Hub Drive 4 wheel Cutting Motor A ball
Glue Pump 1.5KW gear pump Screw China
Slideway 40mm round slidewayBearing Haerbin



Control System



PLC ControllerDelta DVP-24ES00R2 Edition of Program JS-A3.1
Inverter 18KW Anchuan Driving Components CHNT
Signal Components Omron Pneumatic Components AIRTAC
Angle Setting Motor —— Cutting Blade Control Device Pneumatic
Way of Fixing Length Infrared Synchronism Control Cutting System ——









Finished Products

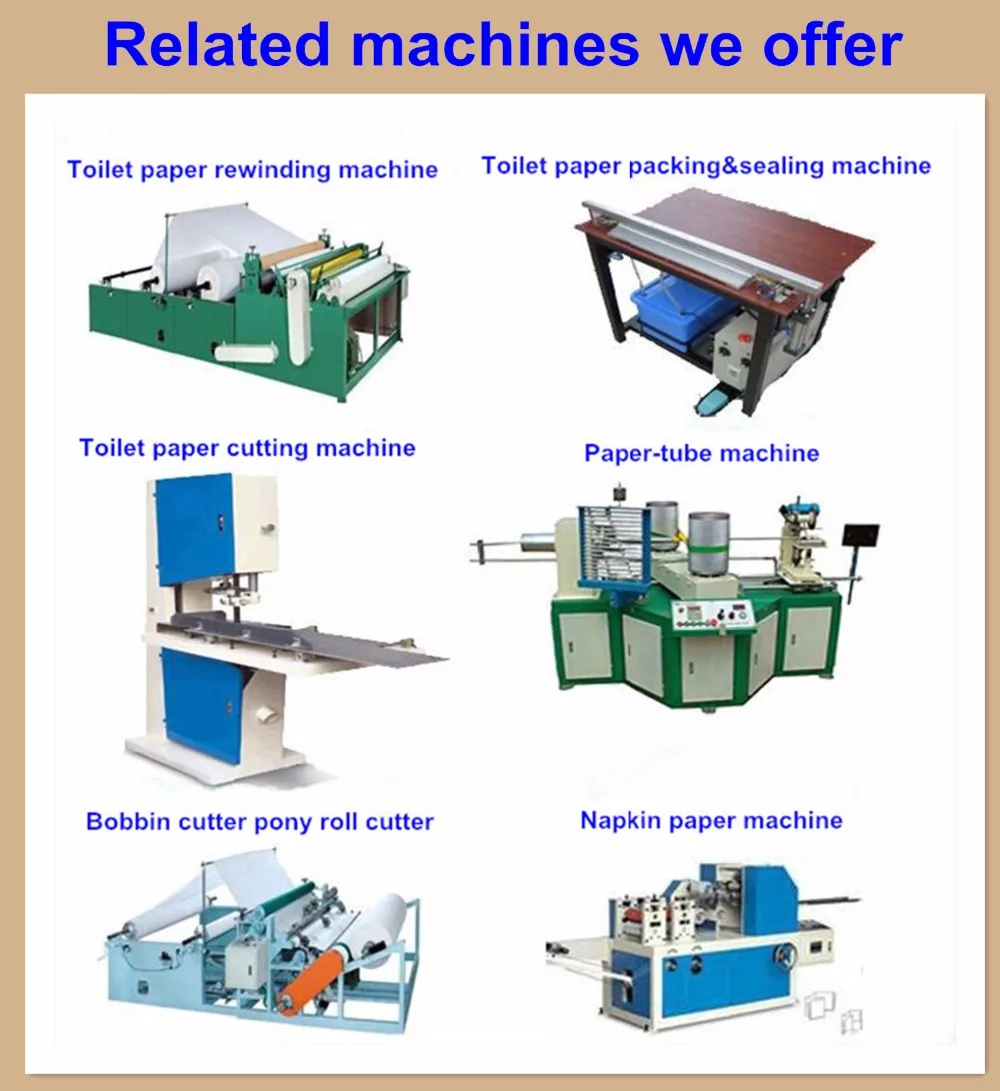

Other products show




Packaging & Shipping

Company Information

Qinyang City Shunfu Paper Making Machinery



The company has strong technical strength, complete equipment. Is approved by the Ministry of Commerce of the "self import and export enterprises", and through the China Quality Certification Center ISO9001:2000 quality certification. In recent years, the company leading products 2100, 1880, 1575 type high speed paper machine, 2100, 1800, 1760, 1300, 1575 Hanging noodles carton board machine type multi cylinder paper machine, multi screen type 787 toilet paper machine have been exported to Indonesia, Uzbekistan, Russia, Kazakhstan, Suriname, Syria, Jierkesitan etc.



The company in good faith, the real spirit of doing business, to provide high quality services and information for your company, the existing large, medium and small paper-making machinery factory 4, can produce 600 micro environmental protection paper machine -- 6000 large and medium-sized network, network, network stack, circular paper coating machine, and pulping equipment all kinds of equipment spare parts. Company website, can be timely and domestic and foreign merchants, investors online to negotiate.









What we can provide


1-787,1092,1575,1760,1880,2400,2640,2800,3200mm paper machine

2-Kraft paper machine

3-Paper egg tray machine

4-Pulp making equipments

5-Paper making equipments

6-Paper processing equipments

7-All kinds of spare parts

Our Services

How to get your suitable machine and production lines?

1.Inquiry:contact us by email,phone,fax,skype,MSN etc.

2.Negotiation:after getting our quotation,you confirm the paper machine model and specify the items you desire.

3.Contract:place order and signing the agreement files.

4.Production:as soon as we received first payment,we will start to produce machines.we will notify client to book the ship 15days in advance.

5.Delivery: all the machines will be shipped according to contracted items.

6.Installation:we will send engineers/technicians to install the whole production line.

Sample service

We can send you different kind quality paper samples, which is produced by our paper machine.

You also can send us the paper sample that you want to produce by DHL,EMS etc.We will design according to your paper samples.

After-sales service

1. Our company view adhering to the "excellent quality, customer satisfaction" service concept, to provide you with excellent products and perfect service.

2. Our company keep the contract and reputation. Quality first, products guarantee a year, as it is quality problem, free replacement.

3. For every purchase of our company's products, the company can send technicians to guidethe installation and debugging, and can undertake the design of process and equipment installation.

4. Our company ensure that supply of parts discount all the year round.

Any questions, please be free to contact me!
